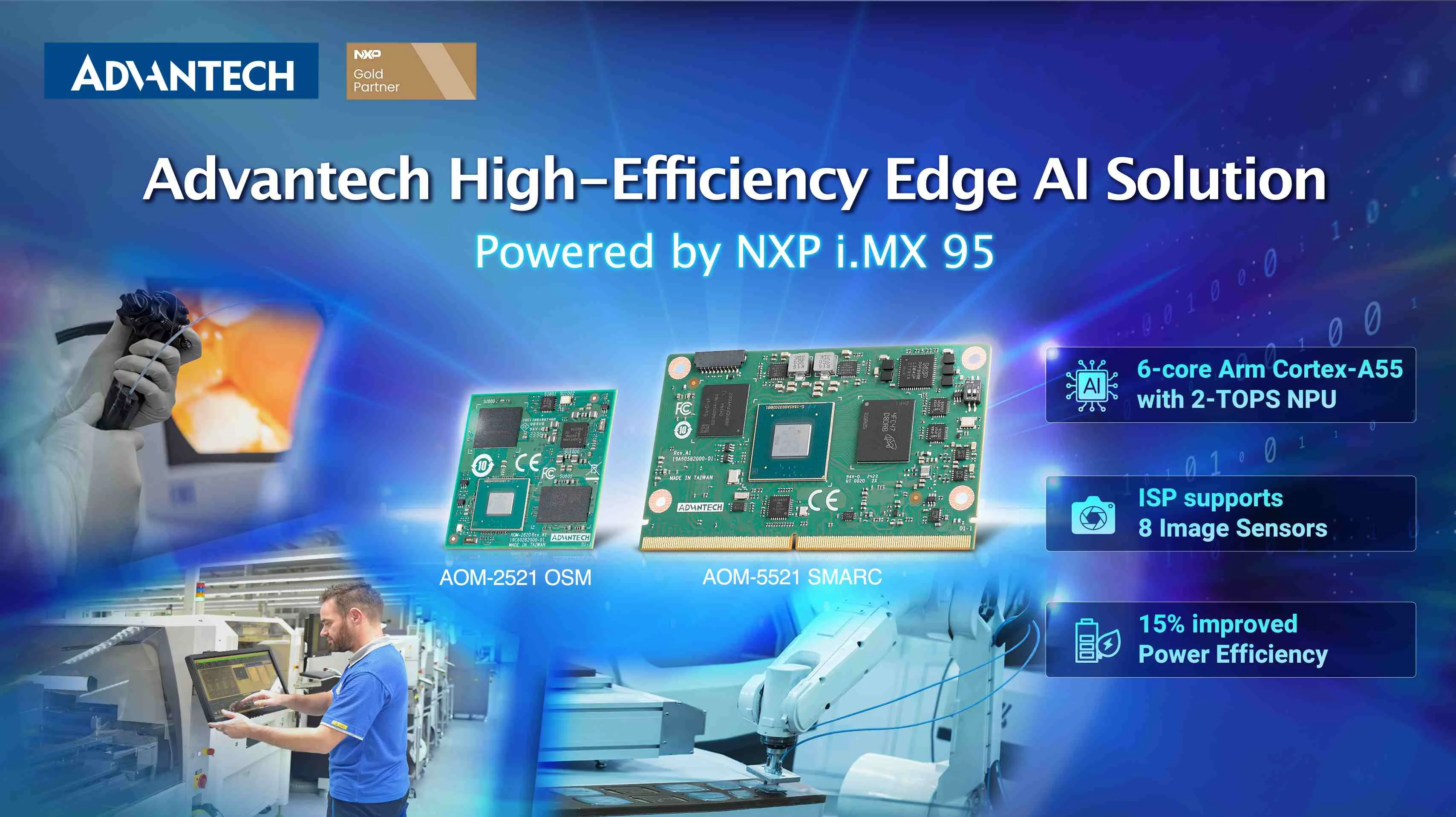

Industrial edge systems often struggle to keep AI workloads and deterministic control on the same hardware without running into timing drift or thermal bottlenecks. As more machine vision and motion platforms lean on local inference, the push to integrate imaging, safety and control logic into tighter spaces becomes difficult to ignore. The latest AOM-5521 and AOM-2521 modules from Advantech take a different approach by using the i.MX 95 processor family from NXP to separate these domains while keeping power budgets and latency within the limits industrial designers expect.
Compute Domains That Balance AI Inference And Real-Time Control
A central detail in this platform is the way the processor splits high level processing from real-time behavior. Up to six Cortex A55 cores handle Linux based loads while a Cortex M7 microcontroller runs deterministic tasks alongside a separate Cortex M33 for functional safety. In real systems this keeps inference work from disturbing servo loops, safety checks or other time critical paths. The 2 TOPS neural engine adds another layer by accelerating lightweight models without needing discrete accelerators or external compute cards. For engineers who build systems that update every few milliseconds, this kind of separation reduces the risk of latency spikes that appear when vision and control share the same domain.
Imaging And Graphics Hardware That Supports Complex Vision Pipelines
The imaging path is built around an ISP capable of handling data from multiple sensors at rates that suit multi camera vision modules. When pipelines grow to several sensors, the bottleneck is rarely raw compute but the movement and conditioning of pixel data. The ISP manages up to 500 megapixels per second and supports formats such as RGB IR and HDR, which helps when lighting varies across a machine’s field of view. A dedicated VPU manages 4K video encoding and decoding while the Mali G310 GPU handles 3D graphics for interfaces or visual overlays. A separate 2D engine drives high resolution displays without interfering with the other accelerators. In practice this allows a single module to run vision inference, sensor fusion and an operator HMI without relying on external graphics hardware.
Networking Behavior Tuned For Deterministic Industrial Traffic
Real-time industrial control depends on predictable network timing rather than peak bandwidth. The inclusion of 10 GbE and multiple 1 GbE interfaces with Time Sensitive Networking support gives these modules a deterministic path for motion control and synchronized equipment. When robots, conveyors or test stations need tight coordination, TSN reduces the jitter that normally appears on general purpose Ethernet. This becomes more important as plants shift to distributed architectures where timing alignment happens across multiple nodes rather than inside a central controller.
System Expansion Paths For Modular Industrial Designs
Many edge systems grow in capability as requirements change. PCIe, USB and CAN FD interfaces provide familiar routes for expansion boards, gateway functions or additional field devices. In machine builders’ designs this reduces the number of custom carrier boards and shortens the time from prototype to production. One detail worth noting is that industrial HMIs and gateway nodes often operate in restricted enclosures where thermals become a long term problem. Low power operation from the Cortex A55 cluster helps keep heat predictable without forcing active cooling into small cabinets.
A Broader Shift Toward Consolidated Edge Intelligence
There is a clear trend behind these modules. Manufacturers and system integrators are moving toward platforms that unify AI, graphics, safety and real-time control without spreading functions over multiple boards. The i.MX 95 family supports that shift by giving engineers a route to integrate more intelligence at the edge without raising power budgets or complicating network timing. For engineers, the takeaway is that this architecture supports more complex sensing and automation while keeping real-time behavior within predictable limits.
Learn more and read the original announcement at www.advantech.com
