Anyone who has tried squeezing Wi-Fi into a compact embedded design knows the antenna is usually the part that refuses to cooperate. Radios get smaller every generation, but the wavelengths they operate at do not shrink to match the enclosure. Add the 6 GHz spectrum introduced with Wi-Fi 6E and Wi-Fi 7 and the problem becomes more awkward. The radio now expects coverage across three bands, yet the board space available for the antenna often looks like an afterthought in the layout.

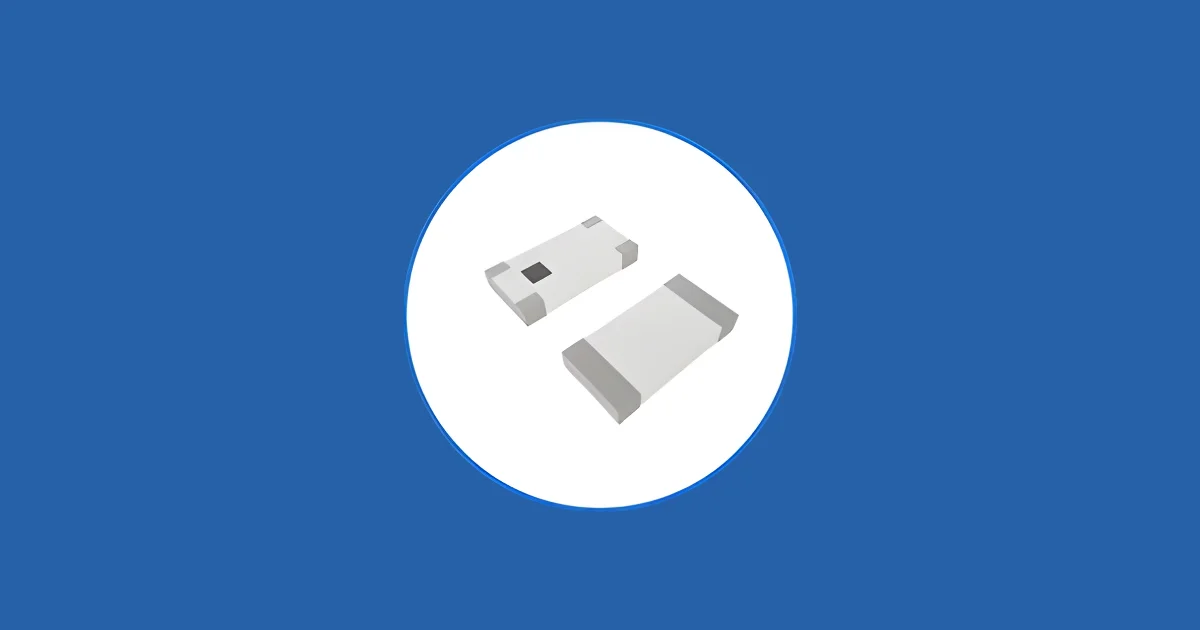

Abracon’s AANI-CH-0080 appears to be aimed directly at that situation. It is a ceramic chip antenna intended to handle 2.4 GHz, 5 GHz, and 6 GHz operation from a footprint that barely occupies a few millimeters of PCB edge.
Fitting Three Wi-Fi Bands Into One Embedded Radiator
Supporting the traditional 2.4 GHz band has always been the easier part of Wi-Fi antenna design. The wavelength is forgiving and small antennas can usually be persuaded to resonate with careful tuning. Move up to 5 GHz and the physical dimensions shrink, which helps integration but tightens the tuning window.
The 6 GHz band introduces another layer of compromise. At those frequencies even small changes in surrounding copper or enclosure material can shift the antenna response enough to matter. In a lab environment the antenna might behave perfectly. Inside a finished product with shielding cans and nearby high speed routing, the story is often different.
The AANI-CH-0080 is designed to operate across all three Wi-Fi ranges. Abracon lists the antenna with peak gain around the mid single digit dBi range and an average efficiency that approaches the high eighty percent region when integrated correctly. That sounds comfortable on paper. Real boards tend to tell a more nuanced story, especially once the enclosure and ground plane start influencing the radiator.
Small Chip Antennas and the PCB Edge Problem
Chip antennas almost always end up near the board edge. There is a reason for that. The surrounding copper plane acts as part of the radiating structure, which means the antenna behaves very differently depending on how that copper is shaped. Move it inward a few millimeters or crowd it with components and the impedance curve shifts.
The AANI-CH-0080 uses a surface mount ceramic body measuring roughly 3.2 mm by 1.6 mm with a height around half a millimeter. That size makes it easy to place from a mechanical perspective, but electrically the surrounding layout still does most of the heavy lifting. Engineers integrating antennas this small often discover that the matching network becomes the real tuning tool once the board is assembled.
Corner placement is usually recommended. That gives the antenna a clearer view of free space and keeps nearby copper from distorting the radiation pattern too aggressively.
What Changes With Wi-Fi 6E and Wi-Fi 7 Designs
The arrival of the 6 GHz Wi-Fi band did not simply add another frequency to cover. It changed the way wireless front ends are arranged inside many devices. Tri band operation is becoming common in routers, gateways, and higher performance IoT equipment. Instead of dedicating separate antennas to each band, designers increasingly look for compact radiators that can cover the entire spectrum.
That sounds simple until the mechanical constraints appear. Industrial IoT devices rarely have generous RF clearances. Consumer electronics hide the antenna behind displays, batteries, or metal frames. Under those conditions a small ceramic antenna that can still radiate efficiently across the Wi-Fi spectrum becomes attractive, even if some tuning effort is required once the prototype boards arrive.
Designers working with antennas like the AANI-CH-0080 tend to spend time adjusting ground plane cutouts, experimenting with matching networks, and occasionally shifting the placement by a millimeter or two. It is the kind of detail that only shows up once the board is powered on and the spectrum analyzer reveals what the antenna is actually doing.
Learn more and read the original announcement at www.abracon.com
