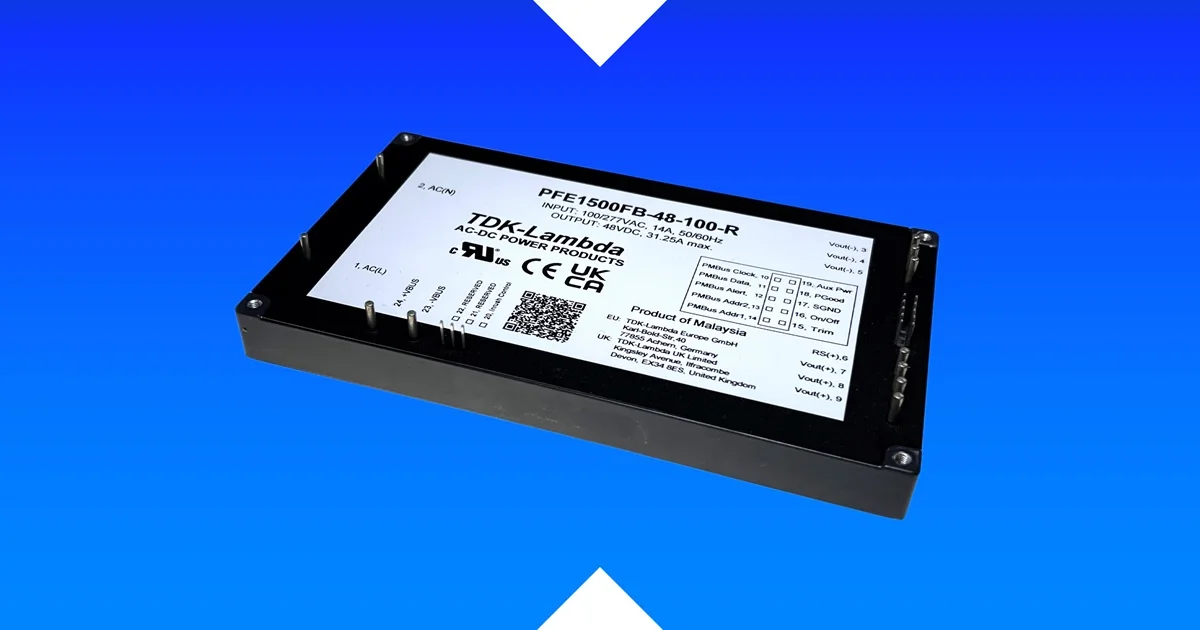

High-power AC-DC conversion gets more awkward once the cooling method changes. A fan-cooled supply is one thing, but sealed enclosures, outdoor cabinets, and liquid-cooled systems usually push thermal design and mechanical integration much harder. TDK-Lambda’s PFE1500FB series lands squarely in that space, bringing 1500 W output, a wide 85 to 305 Vac input range, and a baseplate-mounted format intended for installations where convection or forced air cooling may not be practical.
The PFE1500FB is an AC-DC power module used to convert wide-range single-phase AC input into a regulated 48 V class DC output for industrial and infrastructure equipment. In a typical outdoor enclosure or semiconductor tool, the power module has to deliver stable output while fitting into a system that may not offer much airflow at all. That's where this kind of format starts to make more sense than a conventional enclosed supply.
Wide Input Range Makes It Easier To Deploy Across Systems
The headline electrical detail is the input range. TDK lists 85 to 305 Vac, which allows operation from a nominal 277 Vac line and makes the series usable across a broader mix of industrial, lighting, and building automation installations. That sort of flexibility matters when a product platform may end up in different mains environments but still needs one power stage rather than region-specific changes.
On the output side, the module provides a 48 V nominal rail with an adjustable range of 38.4 to 57.6 Vdc. TDK also lists 1500 W maximum output power and 31.25 A maximum output current for the PFE1500FB-48-100-R. Those numbers place it in the part of the market where the supply is no longer just a utility block on the board. It starts shaping cable losses, thermal paths, enclosure design, and how much margin the rest of the system really has.
Baseplate Construction Is A Big Part Of The Story
TDK is clearly leaning on the mechanical format here, not just the power rating. The module uses a metal baseplate and a five-sided case, and the company says that helps with thermal management and lowers radiated EMI. That also fits the applications TDK is naming, which include industrial equipment, LED displays, lasers, RF power amplifiers, semiconductor fabrication tools, and test and measurement systems. These are all areas where cooling constraints and electrical noise are often part of the design discussion from the start.
The physical size is also relatively flat for the output level at 157.2 x 89.9 x 15.2 mm, with a listed weight of 540 g. That does not make integration simple by itself, but it does give system designers a power module that looks easier to work into conduction-cooled or sealed assemblies than a bulkier enclosed alternative.
PMBus Support Pushes It Toward Managed Power Systems
The PFE1500FB is not just a fixed-output brick. TDK includes PMBus read/write capability for remote monitoring and programming, covering output voltage along with overvoltage, overcurrent, and undervoltage adjustment. That gives the module a more natural place in equipment where the power stage is monitored as part of the wider system rather than treated as an isolated box.
Parallel operation is also supported through droop-mode current share, and TDK says that can be programmed through PMBus as well. Other functions include remote on/off, a power-good signal, and a 9.5 to 14 V auxiliary output rated at 200 mA. TDK lists typical efficiency at 92% with 230 Vac input, and no-load power consumption is given as 2 W when the output voltage enable is switched off.
Safety And Compliance Keep It In Familiar Industrial Territory
The compliance picture is what you would expect for a module intended for broad industrial use. TDK lists IEC, UL, CSA, and EN62368-1 safety certifications for the PFE1500FB series, along with CE and UKCA marking covering Low Voltage, EMC, and RoHS directives. The company also states compliance with EN55032 Class A using external filtering and IEC 61000-4 immunity standards. Those approvals and compliance points place the series in the kind of industrial and infrastructure equipment where wide AC input support, controlled EMI performance, and operation in sealed or low-airflow installations all matter.
Learn more and read the original announcement at www.emea.lambda.tdk.com/
Technology Overview
The TDK-Lambda PFE1500FB is a 1500 W AC-DC power module with an 85 to 305 Vac single-phase input and an adjustable 38.4 to 57.6 Vdc output. It is used in industrial and infrastructure equipment where sealed, conduction-cooled, or low-airflow system designs make conventional fan-cooled supplies less suitable. It also includes PMBus support for monitoring and programming.
Frequently Asked Questions
What is the TDK PFE1500FB used for?
It is used for high-power AC-DC conversion in systems such as industrial equipment, lighting, building automation, semiconductor fabrication tools, LED displays, lasers, RF power amplifiers, and test equipment.
Can the PFE1500FB run from a 277 Vac line?
Yes. TDK lists an 85 to 305 Vac input range, which allows operation from a nominal 277 Vac input.
Does the PFE1500FB support remote configuration?
Yes. It includes a PMBus interface with read/write capability for monitoring and adjusting parameters such as output voltage and protection settings.
