Toshiba has added a faster dual comparator to its TC75W family for industrial overcurrent detection, targeting systems where a delayed fault response can quickly turn into a reliability or safety problem. The new TC75W71FU is designed for circuits that need to sense overcurrent and react immediately, with Toshiba positioning it for industrial robots, photovoltaic equipment, uninterruptible power supplies, transformers, and other control hardware running from relatively low supply rails.
The TC75W71FU is a CMOS dual comparator used to monitor analog threshold conditions and trigger protective action in power and control circuitry. In an overcurrent detection stage, that usually means it sits close to the sensing path and trips a shutdown or protection response once current crosses a defined limit. That role's not especially glamorous, but when fault margins are tight, the speed of that comparator starts to matter a lot more than its part count suggests.
Faster Fault Response In The Same Class Of Device
The most obvious change versus the older TC75W56FU is propagation delay. Toshiba gives the TC75W71FU a maximum low-to-high delay of 45 ns and a maximum high-to-low delay of 30 ns, compared with 550 ns and 250 ns respectively for the earlier device. That is a substantial reduction, and it points directly at the kind of application the part is meant for: protection circuits that are not waiting on firmware, filtered measurements, or slower supervisory logic before taking action.
That speed improvement is the center of the release. Toshiba is not trying to position this as a broad analog platform shift or a feature-heavy comparator family. The argument is simpler than that. If the comparator is there to catch an abnormal current event and shut a system down, then reducing the delay between detection and output transition has practical value in hardware that is already operating near tighter current and voltage limits.
Rail-To-Rail Operation Helps At Low Supply Voltages
Toshiba has also given the device full input and output range operation, allowing it to work from ground to VCC. For low-voltage protection and monitoring circuits, that makes the comparator easier to drop into systems where the sensed signal or output swing needs to use as much of the supply range as possible. The operating supply range is 1.8 V to 5.5 V, so the part can sit in both lower-voltage logic environments and more conventional industrial control rails without needing anything unusual around it.
That combination of rail-to-rail behavior and low-voltage support is what makes the device more flexible than a protection part aimed only at a narrow voltage band. In practice, it means the same comparator family can be considered across smaller control boards, protection subcircuits, and industrial power interfaces where the available local rail may be only 1.8 V or 3.3 V.
More Variants Are Planned Around The Same Core Need

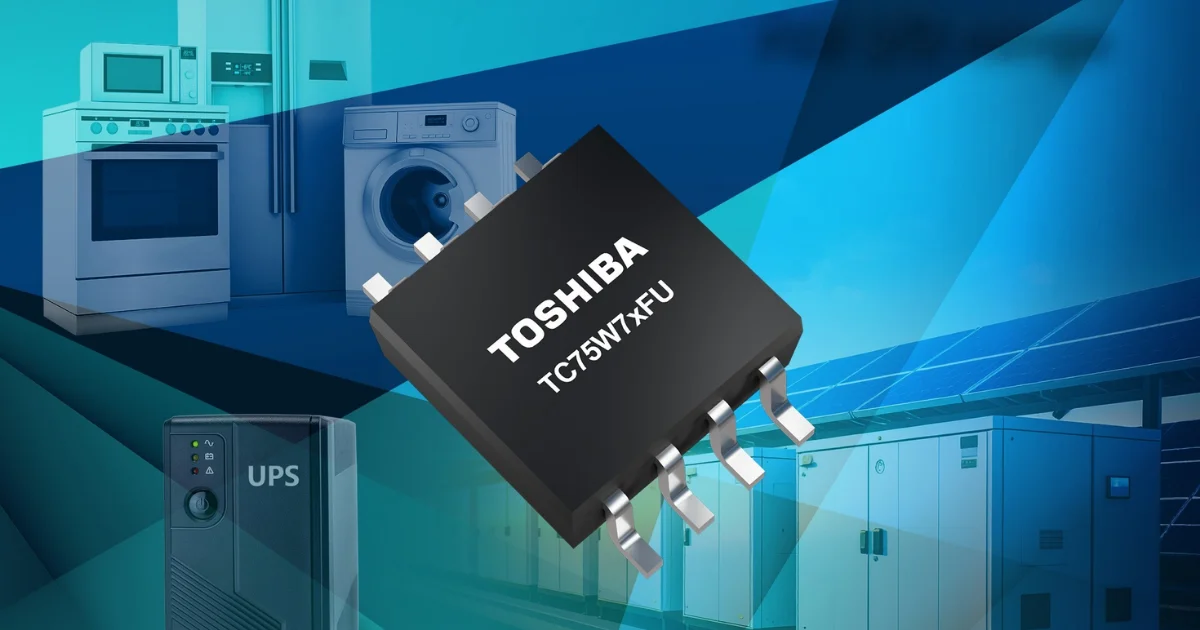

The TC75W71FU comes in Toshiba’s SOT-505, also referred to as SM8, and is rated for operation from -40°C to 125°C. Toshiba has also outlined two related parts in the same family. The TC75W72FU adds hysteresis for improved noise immunity, while the TC75W73FU combines hysteresis with an open-drain output so it can signal into voltage domains outside the comparator’s own supply. Toshiba said those two parts were scheduled for mass production in February 2026.
That broader family context is useful because it shows Toshiba is not just releasing one faster comparator in isolation. It is building out a set of small dual comparator options around a common problem: fast protection response, practical low-voltage operation, and just enough variation in output behavior or noise handling to fit different industrial and mixed-signal control designs.
Learn more and read the original announcement at www.toshiba.semicon-storage.com
Technology Overview
The TC75W71FU is a CMOS dual comparator for overcurrent detection and threshold monitoring in industrial equipment. It supports a 1.8 V to 5.5 V supply range, rail-to-rail input and output operation, and maximum propagation delays of 45 ns for low-to-high and 30 ns for high-to-low transitions. It is offered in a SOT-505 (SM8) package and is rated from -40°C to 125°C.
Frequently Asked Questions
What is the TC75W71FU used for?
It is intended for overcurrent detection and fast protection response in industrial and related equipment such as robots, photovoltaic systems, UPS units, and transformers.
What supply voltage does the TC75W71FU support?
Toshiba specifies single-supply operation from 1.8 V to 5.5 V.
How fast is the TC75W71FU comparator response?
Toshiba specifies maximum propagation delays of 45 ns for low-to-high transitions and 30 ns for high-to-low transitions.
