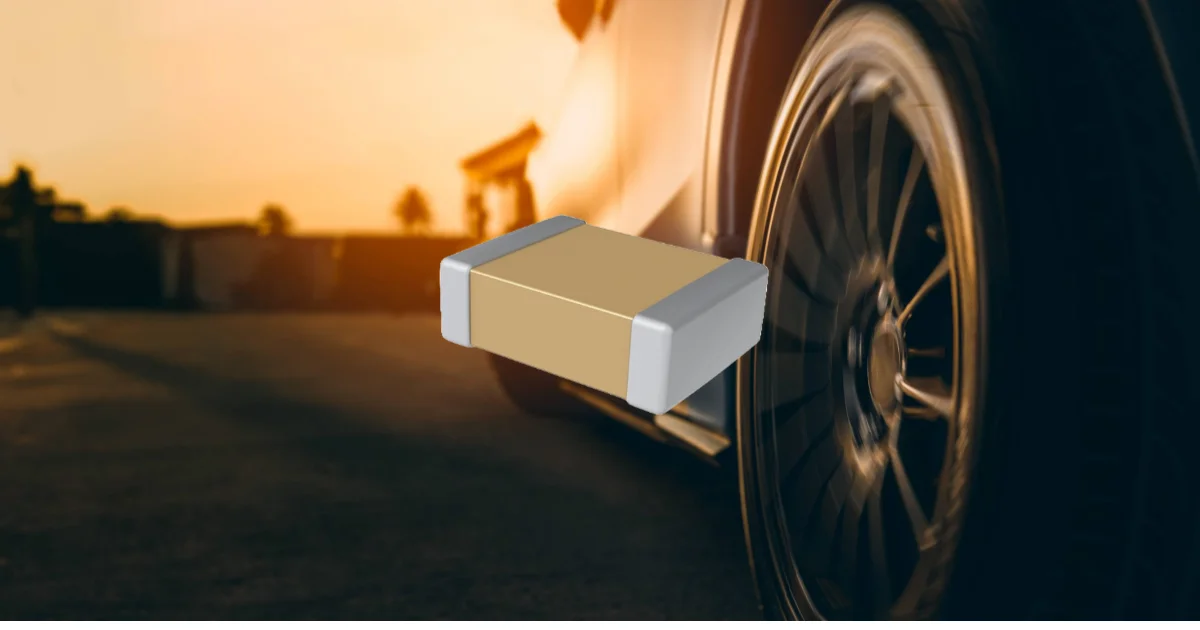

YAGEO Group has introduced C0G VW80808 Automotive Grade Flexible Termination multilayer ceramic capacitors for automotive systems that need stable capacitance and improved resistance to board flex stress. The devices combine C0G dielectric behavior with flexible termination construction, targeting harsh environments in under-hood and in-cabin electronic modules. The C0G VW80808 FT CAP series is an automotive-grade MLCC family used for stable capacitance, filtering, snubbing, and reliability-critical circuits in vehicle electronics. In an ECU, inverter, battery management system, or ADAS controller, these capacitors sit close to active electronics and power circuitry where vibration, thermal cycling, humidity, and board bending can all affect long-term reliability.
Flexible Termination For Automotive MLCC Reliability
Board flex is a common failure concern for ceramic capacitors because the ceramic body is mechanically rigid. Stress transferred from the PCB into the capacitor can create flex cracks, which may lead to low insulation resistance or short-circuit failures. YAGEO’s flexible termination structure is designed to absorb more of that mechanical strain before it reaches the ceramic body.
The C0G VW80808 FT CAP series supports up to 5 mm of board flex without capacitance shift, according to YAGEO. That specification is relevant for automotive assemblies exposed to vibration, handling stress, connector insertion forces, and thermal expansion across the board. It does not remove the possibility of mechanical damage under extreme conditions, but it gives designers more margin than a standard termination structure in flex-sensitive placements.
C0G Stability Across Temperature And Voltage
The use of C0G dielectric gives the series a different role from higher-capacitance class II MLCCs. C0G is valued for capacitance stability over temperature, time, and applied voltage, making it suitable for circuits where tolerance drift can affect timing, filtering, sensing, or compensation behavior. YAGEO specifies temperature stability of ±30 ppm/°C across -55°C to +125°C. The series covers capacitance values from 1000 pF to 6.8 µF, with DC voltage ratings from 6.3 V to 1000 V. That range gives designers options across low-voltage signal conditioning and higher-voltage power electronics support circuits, depending on capacitance, package, and voltage selection.
The parts are available in EIA 0603, 0805, 1206, and 1210 case sizes. Those footprints are widely used in automotive electronics and give engineers flexibility when balancing capacitance, voltage rating, board area, and mechanical robustness.
Qualification For Vehicle Electronics
The VW80808 FT CAP series is qualified to AEC-Q200 and VW80808 requirements, with RoHS and REACH compliance. AEC-Q200 is the common automotive qualification baseline for passive components, while VW80808 adds a vehicle manufacturer-specific reliability requirement for automotive use.
That qualification context is important for safety-critical and mission-critical modules where component substitution is not just a matter of matching capacitance and voltage. Designers working on EPS ECUs, ADAS controllers, powertrain ECUs, DC-DC converters, inverters, battery management systems, and onboard chargers need capacitors that can meet both electrical and mechanical reliability demands.
Where The Series Fits In Automotive Designs
YAGEO positions the series for flex mitigation in automotive electronics exposed to vibration, temperature cycling, humidity, and bias stress. In powertrain and under-hood modules, thermal and mechanical conditions tend to be more severe. In ADAS, EPS, and battery-related systems, reliability concerns are tied to both operating environment and safety function.
The main value of the C0G VW80808 FT CAP family is not just the capacitance range. It is the combination of C0G electrical stability, flexible termination crack resistance, automotive qualification, and package availability. For engineers trying to reduce the risk of MLCC-related field failures in vehicle electronics, that combination gives the series a clear role in mechanically stressed and electrically sensitive circuits.
Learn more and read the original announcement at www.yageo.com
Technology Overview
The YAGEO C0G VW80808 FT CAP series is an automotive-grade MLCC family using C0G dielectric and flexible termination construction. The capacitors support capacitance values from 1000 pF to 6.8 µF, DC voltage ratings from 6.3 V to 1000 V, -55°C to +125°C operation, ±30 ppm/°C temperature stability, and EIA 0603, 0805, 1206, and 1210 case sizes.
Frequently Asked Questions
What are YAGEO C0G VW80808 MLCCs used for?
They are used in automotive electronics that need stable capacitance and improved resistance to board flex stress, including ECUs, ADAS controllers, DC-DC converters, inverters, BMS, and onboard chargers.
What does flexible termination do in an MLCC?
Flexible termination helps reduce the transfer of mechanical stress from the PCB into the ceramic capacitor body, lowering the risk of flex cracks during board bending or vibration.
What temperature range do the C0G VW80808 MLCCs support?
The series operates from -55°C to +125°C, with C0G temperature stability specified at ±30 ppm/°C.
