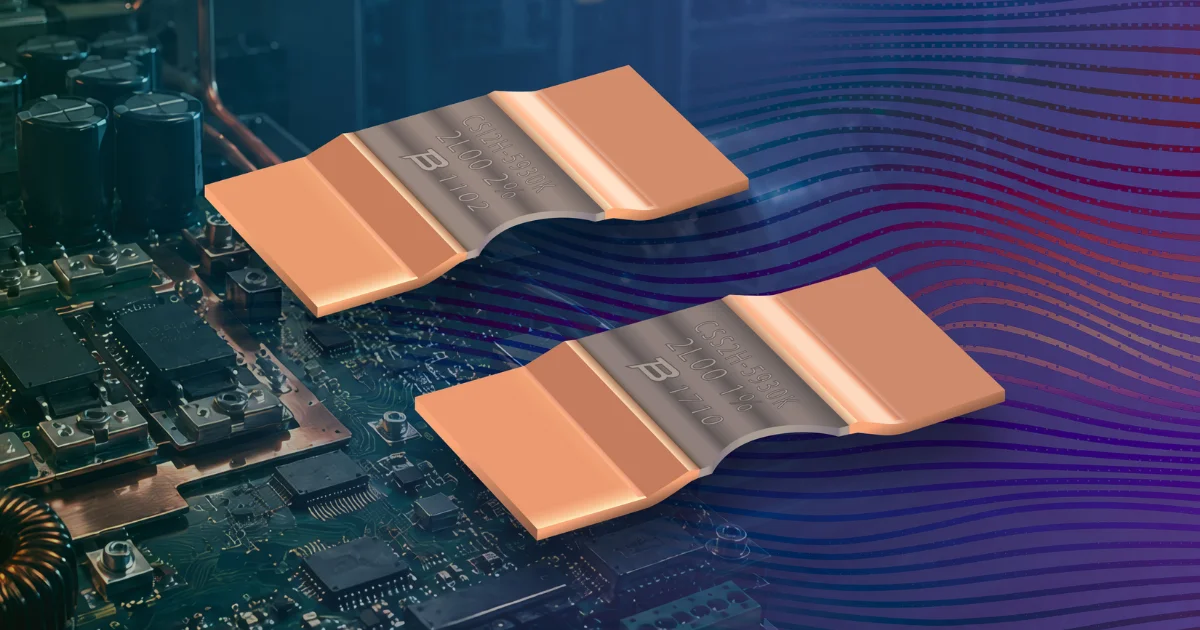

Bourns has extended its CSS2H-5930 and CSI2H-5930 current sense resistor series with new 0.1 mΩ models rated at 15 W. The CSS2H-5930R-L100x and CSI2H-5930R-L100x use an electron-beam-welded metal strip design with low inductance and low thermal EMF characteristics for high-current sensing applications.
The new resistors are rated at 15 W at 70°C and operate across a temperature range of -55°C to +170°C. Inductance is below 3 nH for the Type R material, while the resistive alloy has a TCR of ±50 ppm/°C between 20°C and 60°C. By adding a 0.1 mΩ option, Bourns is targeting applications where the voltage drop and power dissipation across the current sensing element need to be kept low.
0.1 mΩ Resistance with 15 W Power Rating
Both new models have a 0.1 mΩ resistance value, with the CSS2H version available in ±1% and ±5% resistance tolerances. The CSI2H version adds a ±2% option alongside ±1% and ±5%.
The temperature coefficient including the copper terminals is specified at ±275 ppm/°C between 20°C and 60°C. Both models are RoHS compliant and halogen free.
The CSS2H-5930R-L100x is also AEC-Q200 compliant and automotive grade. Bourns lists battery management systems among the applications for this version, alongside other high-current sensing requirements.
Current Sensing for Automotive and Industrial Power
The new 0.1 mΩ resistors are intended for current sensing and voltage division, with target applications including power modules, frequency converters and industrial power systems.
The electron-beam-welded metal strip construction is designed for low resistance and long-term stability, while the low inductance and thermal EMF characteristics support current measurement in high-current circuits.
The CSS2H-5930 and CSI2H-5930 series, including the new 0.1 mΩ models, are available now through Bourns' authorized distribution network. Samples are also available from Bourns.
Learn more and read the original announcement at bourns.com.
Technology Overview
Current sense resistors, or shunts, use a known low resistance to produce a measurable voltage drop proportional to the current flowing through them. Very low resistance values are used in high-current circuits to limit the voltage drop and power dissipated by the sensing element.
The new Bourns CSS2H-5930R-L100x and CSI2H-5930R-L100x models provide a 0.1 mΩ resistance value with a 15 W power rating and inductance below 3 nH.
FAQ
What are the new Bourns CSS2H-5930 and CSI2H-5930 models?
Bourns has added 0.1 mΩ models to its CSS2H-5930 and CSI2H-5930 current sense resistor series. Both are rated at 15 W at 70°C and operate from -55°C to +170°C.
What is the inductance of the new Bourns current sense resistors?
Bourns specifies inductance below 3 nH for the Type R material. The resistive alloy has a TCR of ±50 ppm/°C from 20°C to 60°C.
Are the new Bourns current sense resistors automotive qualified?
The CSS2H-5930R-L100x is AEC-Q200 compliant and automotive grade. The supplied announcement does not specify the same qualification for the CSI2H-5930R-L100x.
