Toshiba Launches Compact Automotive Gate Driver IC for Next Generation BLDC Motor Systems

The move away from mechanical actuation toward electrically driven systems has changed the internal architecture of modern vehicles. Where doors, seats, pumps and fans once relied on brushed motors, manufacturers are increasingly choosing three phase BLDC designs to improve efficiency, cut noise and extend working life. Toshiba’s new TB9084FTG gate driver IC arrives at the same moment this transition is accelerating, and the device is aimed at helping engineers build smaller, more capable motor systems for the next generation of automotive platforms.

A Push Toward Electrified Actuation

Body systems such as sliding doors and powered liftgates represent only a small part of a much wider trend. Electric pumps for cooling loops, compact motor generators and cabin air systems are all moving to more efficient BLDC operation. This places new expectations on gate drivers, which must support stable control, protection, current sensing and communications without pushing up cost or board complexity. Toshiba has been building gate driver solutions for some time, and the TB9084FTG builds on lessons learned from the earlier TB9083FTG while aiming to simplify integration for compact modules.

Architecture Shaped Around Practical Constraints

At its core, the device is an integrated driver for three phase BLDC motors, but the surrounding feature set shows where Toshiba expects designers to struggle. A charge pump supports high side drive, while a single channel current sense amplifier provides a direct path for motor current monitoring. An internal oscillator and SPI interface round out the control elements. The chip also includes a collection of fault detection circuits that help engineers handle conditions such as overcurrent or temperature excursions without relying on large external protection networks.

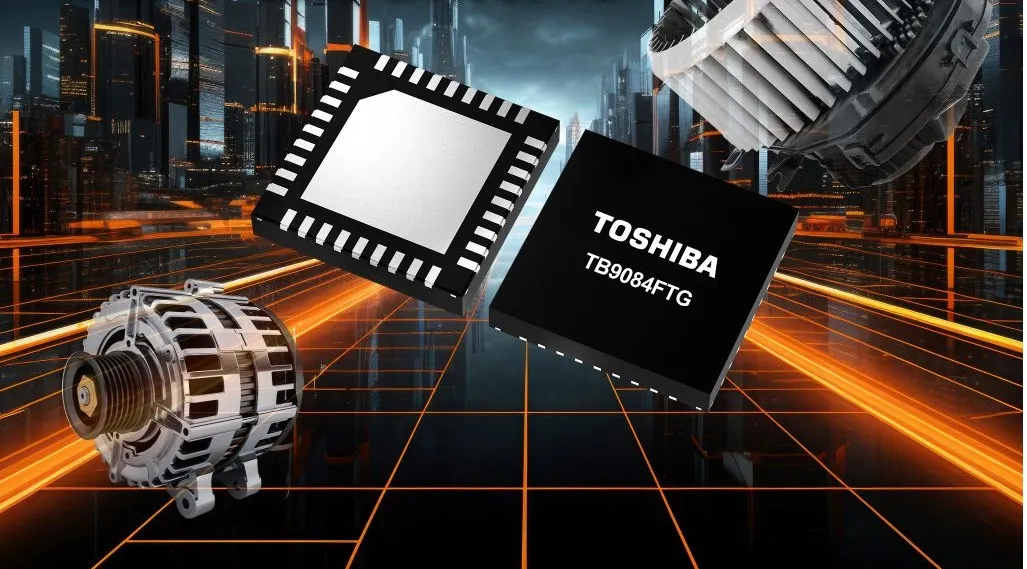

The footprint is a key part of the device’s appeal. By trimming the internal architecture and reducing die area, Toshiba has fitted the IC into a 6 x 6 mm VQFN36 package with fewer pins than its predecessor. The smaller package allows more freedom when designing compact assemblies, particularly in modules where BLDC motors, sensors and control electronics share limited space.

Automotive Reliability Considerations

Automotive designers will note the qualification level. The TB9084FTG meets AEC Q100 Grade 0 standards, which means it is intended for operation across a wide ambient temperature range from minus 40 degrees Celsius to 150 degrees Celsius. For systems mounted close to heat sources or enclosed inside door structures, this margin can simplify thermal planning. The package also uses a wettable flank structure to make solder joint inspection easier, an important detail for high volume production.

Toshiba’s broader roadmap points toward continued expansion of its gate driver family. As more electromechanical systems migrate to BLDC motors, the need for compact and robust drivers will only grow. The TB9084FTG is positioned as one of the building blocks for this shift, giving engineers a way to support efficient, quiet and long lived motion systems without adding unnecessary design overhead.
