Designing multi-band GNSS hardware often becomes a fight against signals that were never part of the navigation chain in the first place. A receiver can cope with weak satellite power, but the moment nearby radios begin lifting the local noise floor, the whole system feels unstable in ways that show up only after the unit leaves the bench. Engineers see this when 5G carriers or short-range radios drift closer to the feed line than intended. The front end starts bending under that pressure, not catastrophically, just enough to cause slow positional drift. An LNA that stays linear while this clutter moves around it becomes less about raw sensitivity and more about keeping the chain predictable. That is the environment where the NT1199HEAE4S from Nisshinbo Micro Devices fits naturally.
Wide GNSS Coverage Designed for Interference-Heavy Layouts
The NT1199HEAE4S spans 1164 to 1610 MHz, and that range matters because modern GNSS receivers spread across L1, L2, L5, and regional equivalents without leaving space for dedicated filtering between each path. The 0.65 dB typical noise figure keeps the amplifier quiet, yet the gain remains flat across all navigation bands. Nothing draws attention more than a board that works in one region of the spectrum and falls apart in another. Instead of chasing perfect alignment, the device holds its performance steady even when the RF background shifts. This consistency becomes noticeable during field tests where LTE downlink energy presses close to the antenna and the receiver has to hold lock without the luxury of controlled lab isolation.
Linearity That Holds When Nearby Radios Misbehave
The defining behavior of the NT1199HEAE4S is its tolerance to strong input signals. Input P1dB values reach around +1.5 dBm at L1 and about 0 dBm in the L2, L5, and L6 bands. In practice this means the amplifier resists compression when the system is exposed to aggressive emitters from Wi-Fi, BLE, or a shared satellite communication front end. Engineers often discover these interactions only after positional jumps show up in logs rather than immediate hard failures. An LNA that stays linear under that pressure reduces the need for reactive filtering, and the downstream baseband ends up receiving a cleaner, more predictable signal.
Practical Characteristics Shaped for Compact GNSS Modules

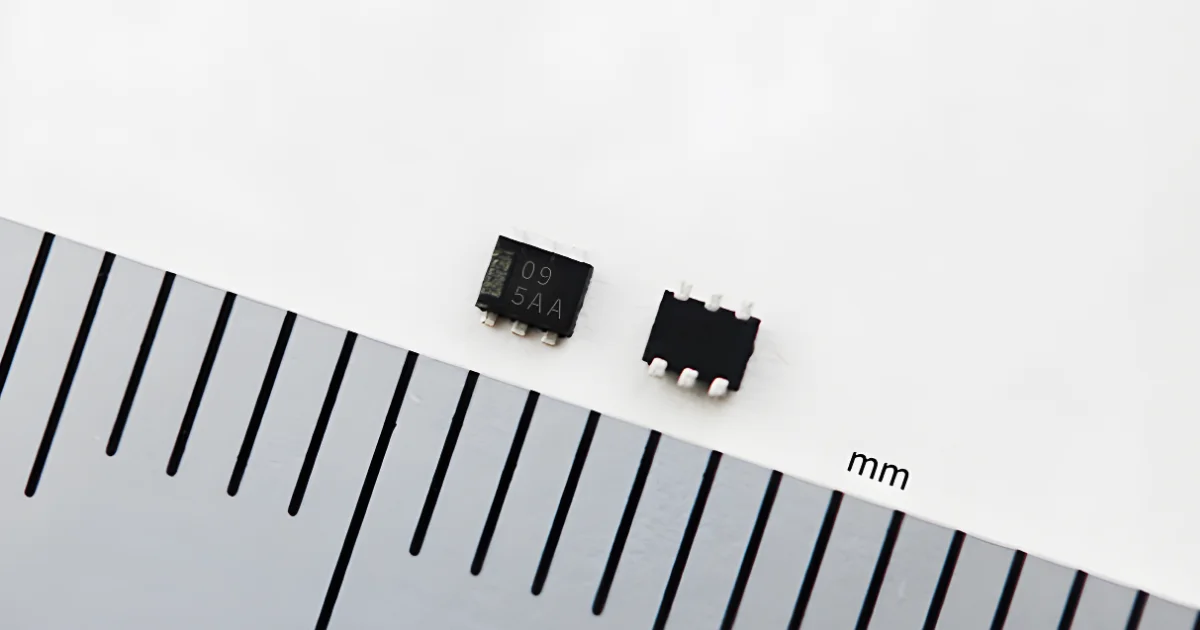

The device sits in a SON-6-HE package measuring 1.6 by 1.6 mm with a height near 0.55 mm. The small footprint helps in antenna-adjacent placement where trace length becomes as important as absolute performance. Its 12 mA operating current at 3.3 V looks modest, but what matters more is how it avoids thermal drift over long duty cycles. You notice this during late-stage debugging when the board has been powered for hours. The NT1199HEAE4S keeps behaving in a way that avoids the slow detuning that often appears in miniature active antennas or combination GNSS modules.
Positioned for GNSS Systems Exposed to Unpredictable RF Environments
GNSS integration used to be limited to navigation hardware. Now it appears in industrial trackers, automotive systems, consumer devices, and small communication modules that constantly share spectrum with other radios. That broader deployment brings rougher RF neighborhoods, not cleaner ones. A wideband, low noise, high linearity part like the NT1199HEAE4S suits that shift. The ongoing development of an AEC-Q100 automotive grade variant reinforces how these devices will likely face environments where interference is not controlled, only managed.
Learn more and read the original announcement at www.nisshinbo-microdevices.co.jp
