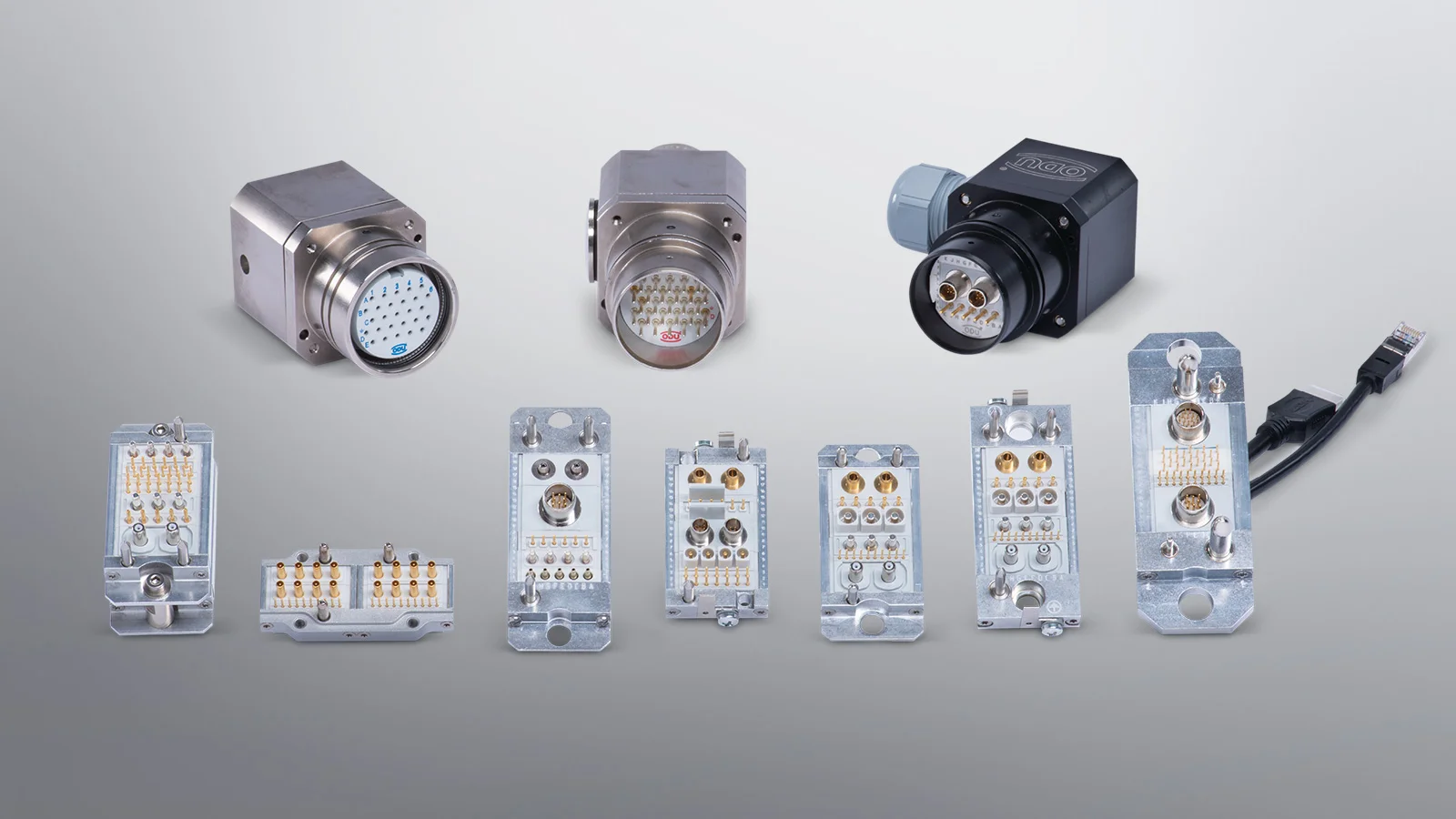

ODU has highlighted its ODU-MAC Silver-Line and ODU DOCK Silver-Line connector families for automated docking applications, focusing on high mating-cycle durability, modular configurations, and maintenance-friendly designs for industrial systems.
The ODU-MAC Silver-Line is a modular docking connector system used in automated equipment, robotics, hybrid interfaces, and industrial applications. According to ODU, the connector family supports between 100,000 and 10 million mating cycles depending on configuration and incorporates a 360° contact system designed for environments subject to vibration and shock.
Docking Frames and Tolerance Compensation
The ODU-MAC Silver-Line is available with eight docking frame options that can be populated with different contact modules. ODU states that the modular approach allows docking systems to be configured around individual mechanical and electrical requirements.
Automated docking systems are rarely perfectly aligned during every mating cycle. To address this, ODU offers docking frames with positional tolerances of up to ±4.0 mm. The company states that these frames maintain reliable connections even when slight displacement occurs during docking operations.
The ODU DOCK Silver-Line is available in three sizes and supports different contact insert options. ODU positions the product family for applications where repeatability and system availability are important considerations.
Quick-Change Head Design
ODU also highlights a quick-change head solution developed for docking systems that experience large numbers of insertion cycles during operation. According to the company, the design supports up to 10 million mating cycles and allows the front section of the connector frame to be replaced independently of the rear section and cable assembly.
In conventional docking installations, connector replacement can require removal of the entire assembly and associated cabling. ODU states that its quick-change approach allows replacement of the mating interface in seconds while leaving the rear connector section unchanged, reducing maintenance downtime and avoiding a complete system shutdown.
Connectors for Automated Docking Applications
The ODU-MAC Silver-Line and ODU DOCK Silver-Line families are intended for automated docking systems used in industrial equipment, robotics, test systems, and other applications requiring frequent mating cycles. The connector families combine modular contact arrangements, docking-frame options, and maintenance-focused features within a common platform.
ODU states that the product range can be configured to support individual system requirements while maintaining long service life in applications involving repeated automated connection and disconnection cycles.
Learn more and read the original announcement at www.odu-connectors.com
Technology Overview
The ODU-MAC Silver-Line is a modular docking connector system available with multiple frame and contact-module configurations. The platform supports between 100,000 and 10 million mating cycles, incorporates 360° contacting, and offers docking-frame tolerances of up to ±4.0 mm. ODU DOCK Silver-Line is available in three sizes with different contact insert options.
Frequently Asked Questions
What are ODU docking connectors used for?
ODU positions the ODU-MAC Silver-Line and ODU DOCK Silver-Line for automated docking systems, industrial equipment, robotics, hybrid interfaces, and other applications requiring frequent connection cycles.
How many mating cycles do the connectors support?
According to ODU, supported mating-cycle ratings range from 100,000 to 10 million cycles depending on the product configuration.
What is the quick-change head solution?
The quick-change head design allows the front section of the connector frame to be replaced while leaving the rear section and cable assembly installed.
