Micro Commercial Components (MCC) has introduced the MCACLD70N04YHE3-TP, a 40 V N-channel power MOSFET for automotive and high-current power applications. The AEC-Q101 qualified device combines a maximum RDS(on) of 0.7 mΩ with a continuous drain current rating of 350 A in a compact DFN5060-C package.
Built on the company's Split Gate Trench (SGT) MOSFET technology, the device is intended for applications including battery management systems, DC-DC converters, power distribution modules, motor drives and load switches.
350 A Current Rating
The MCACLD70N04YHE3-TP is rated for a continuous drain current of up to 350 A and a drain-source voltage of 40 V, making it suitable for both 12 V and 24 V automotive power architectures.
According to MCC, the device's maximum on-resistance of 0.7 mΩ at VGS = 10 V helps reduce conduction losses in high-current switching applications.

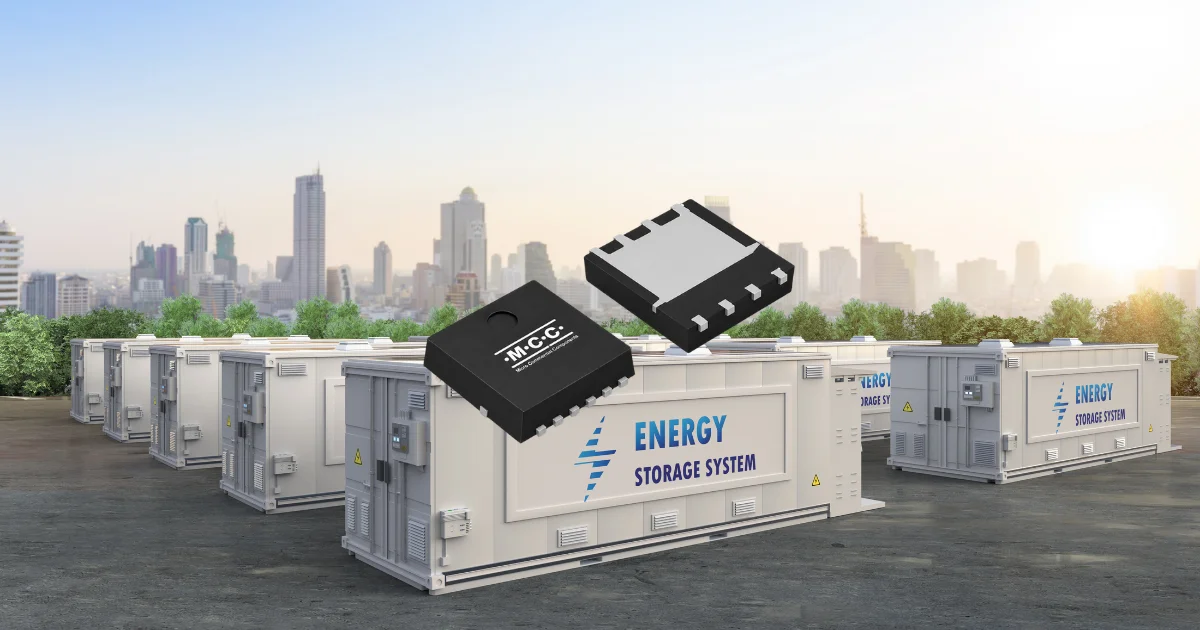

DFN5060-C Package
The MOSFET is supplied in a DFN5060-C package that supports high power density while reducing PCB area. The package also provides a junction-to-case thermal resistance of 0.4°C/W to improve heat dissipation under high load conditions. MCC says the device's Split Gate Trench (SGT) technology reduces switching losses while maintaining low on-resistance for high-frequency operation.
Automotive Applications
The MCACLD70N04YHE3-TP is AEC-Q101 qualified for automotive use and is intended for battery management systems, power management units, DC-DC converters, load switches, synchronous rectification, motor drives, industrial power supplies and other high-current power applications.
The MCACLD70N04YHE3-TP is available now through MCC and its authorized distributors.
Learn more and read the original announcement at the MCC website.
Technology Overview
The MCACLD70N04YHE3-TP is a 40 V AEC-Q101 qualified N-channel power MOSFET from MCC. It combines a maximum RDS(on) of 0.7 mΩ with a 350 A current rating in a DFN5060-C package and uses Split Gate Trench (SGT) technology to reduce conduction and switching losses in automotive and industrial power applications.
Frequently Asked Questions
What is the MCACLD70N04YHE3-TP?
The MCACLD70N04YHE3-TP is a 40 V AEC-Q101 qualified N-channel power MOSFET from MCC for automotive and high-current power applications.
What are the key specifications?
The device offers a maximum RDS(on) of 0.7 mΩ at VGS = 10 V, a continuous drain current rating of 350 A and a junction-to-case thermal resistance of 0.4°C/W.
What applications is the MOSFET intended for?
Target applications include battery management systems, DC-DC converters, power distribution modules, motor drives, load switches, synchronous rectification and industrial power supplies.
