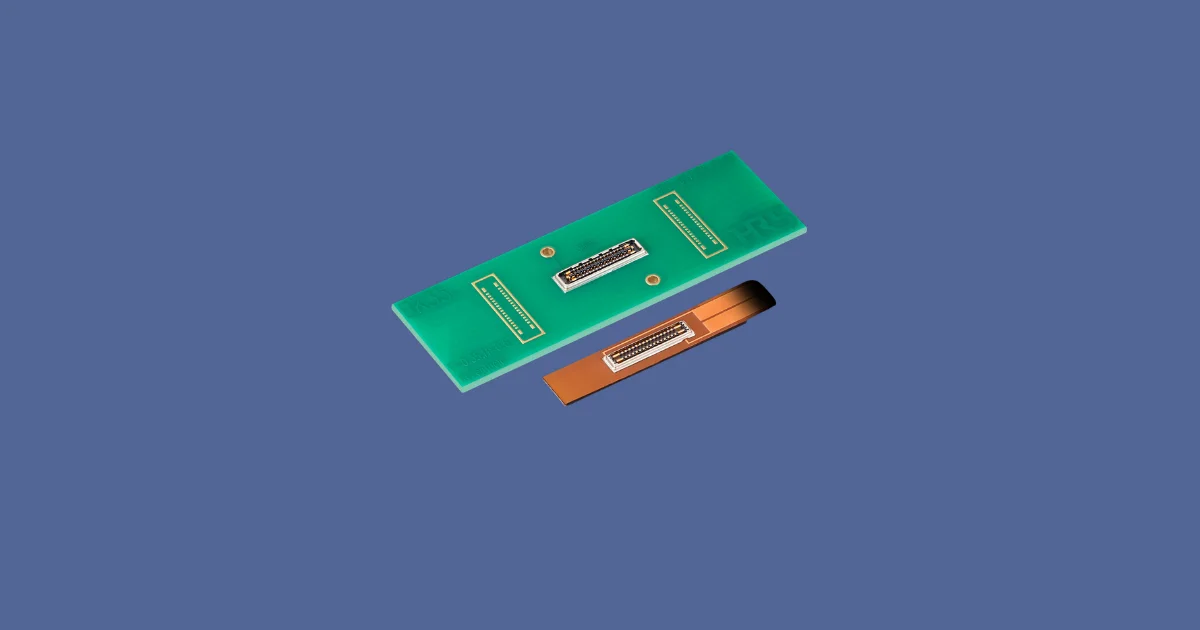

Hirose has introduced the BK35 Series, a hybrid FPC-to-board connector designed for high-speed and high-frequency applications. The connector combines power and signal contacts in a fully shielded structure and supports data transmission speeds of up to 40 Gbps and RF signal transmission up to 40 GHz.
The BK35 Series is intended for compact electronic devices including smartphones, tablets, notebook PCs and wearable devices where space is limited and EMI performance is important.
Compact Hybrid Design
The BK35 Series features a 0.35 mm pitch, 2.2 mm depth and 0.6 mm stacking height. The hybrid design combines power and signal contacts in a single connector, including four power contacts rated at 2.5 A each. Hirose says the fully shielded structure blocks both radiated and incident magnetic fields to help maintain signal integrity in high-speed applications.
The connector also features a fully armored design to improve durability and help protect the housing from damage caused by mating misalignment.
High-Speed Performance
The BK35 Series supports data transmission speeds of up to 40 Gbps and RF signal transmission up to 40 GHz. According to Hirose, the connector provides the following maximum voltage standing wave ratio (VSWR) performance:
- 0-5 GHz: 1.3
- 5-10 GHz: 1.4
- 10-20 GHz: 1.5
- 20-40 GHz: 1.8
The BK35 Series is designed for compact electronic systems requiring high-speed data transmission and RF performance.
Learn more and read the original announcement at the Hirose Electric website.
Technology Overview
Hybrid FPC-to-board connectors combine power and signal contacts in a single connector, helping reduce PCB space while simplifying interconnect design. Shielded connector designs are used in high-speed applications to minimise electromagnetic interference and maintain signal integrity.
Frequently Asked Questions
What is the Hirose BK35 Series?
The BK35 Series is a hybrid FPC-to-board connector with a fully shielded structure for high-speed and high-frequency applications.
What performance does the BK35 Series support?
The connector supports data transmission speeds of up to 40 Gbps and RF signal transmission up to 40 GHz.
What applications is the BK35 Series designed for?
Typical applications include smartphones, tablets, notebook PCs, wearable devices and other compact electronic systems.
