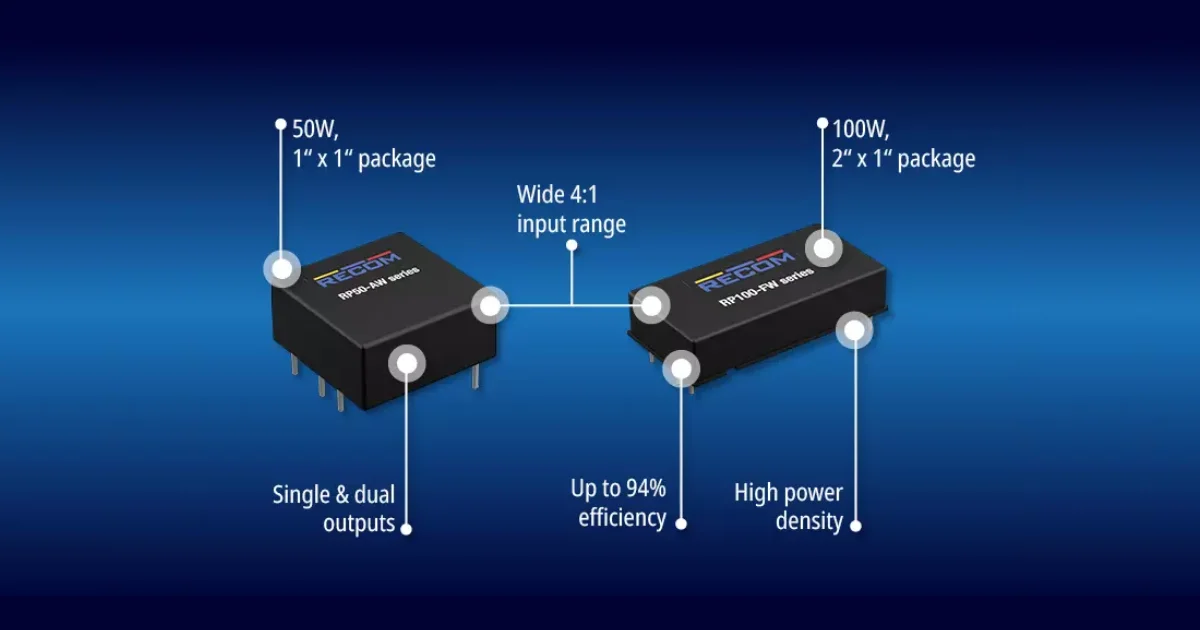

RECOM has expanded its isolated DC/DC converter range with the RP50-AW and RP100-FW series, providing up to 50 W and 100 W output power respectively. Both series support 4:1 input voltage ranges of 9–36 VDC or 18–75 VDC. The RP50-AW reaches efficiencies up to 93% in a 1 × 1-inch footprint, while the higher-power RP100-FW offers efficiencies up to 94%.
The converters are designed for industrial automation, transportation, datacom and telecom systems, as well as test and measurement equipment.
50 W from a 1 × 1-Inch Footprint
The RP50-AW provides up to 50 W output power and 2.25 kVDC isolation. Alongside the two 4:1 input ranges, RECOM offers the series with both single and dual outputs.
Operating temperature extends from -40°C to +105°C. An optional heatsink version is also available for applications requiring improved thermal performance at higher ambient temperatures.
The combination of the 1 × 1-inch package and wide input range allows the same converter family to cover systems operating from several different nominal DC supply voltages.
RP100-FW Extends Output Power to 100 W
For higher-power applications, the RP100-FW delivers up to 100 W with efficiency reaching 94%. It uses the same 9–36 VDC and 18–75 VDC input ranges as the 50 W series.
Without a heatsink, the converter measures 50.8 × 25.4 × 10.7 mm. Its operating temperature range extends from -40°C to +110°C, and the series can operate at altitudes up to 5,000 m.
RECOM also offers an optional heatsink version measuring 50.8 × 26.5 × 32.2 mm for applications requiring additional thermal management.
Protection and Remote Control
Both converter families include overvoltage, overload and overtemperature protection, together with continuous short-circuit protection.
Remote ON/OFF control supports positive or negative logic, while output voltage can be adjusted across a wider range on selected models.
The RP50-AW and RP100-FW comply with current RoHS and REACH requirements and are designed for use in industrial control systems, test and measurement equipment, communication infrastructure and transportation electronics.
Learn more and read the original announcement at recom-power.com.
Technology Overview
The RECOM RP50-AW and RP100-FW are isolated DC/DC converter series providing up to 50 W and 100 W respectively. Both offer 4:1 input ranges of 9–36 VDC or 18–75 VDC, with efficiencies reaching 93% for the RP50-AW and 94% for the RP100-FW.
FAQs
What input voltage ranges do the RP50-AW and RP100-FW support?
Both series are available with 4:1 input ranges of either 9–36 VDC or 18–75 VDC.
How much power do the new RECOM DC/DC converters provide?
The RP50-AW provides up to 50 W from a 1 × 1-inch footprint, while the RP100-FW provides up to 100 W.
What protection functions are included?
Both series include overvoltage, overload, overtemperature and continuous short-circuit protection, as well as remote ON/OFF control.
